Germany Rack G3 New Series 2025

Germany Rack G3 New Series 2025

FEATURES

Standards: Manufactured to ANSVEIA-310-E standards (amended ANSI/EIA-310-D). IEC-60297-1, IEC-60297-2, BS5954 Part:2, DIN 41494, and 19″ standard.

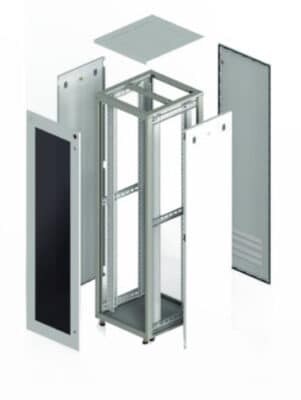

Design and Manufacturing: Modular knock-down design, engineered by German engineers and manufactured using German technology. All parts must comply with the standards and bear the trademark of the 19″ GERMANY EXPORT RACK, including the master key locking system, casters, pedestal and sliding latch lock.

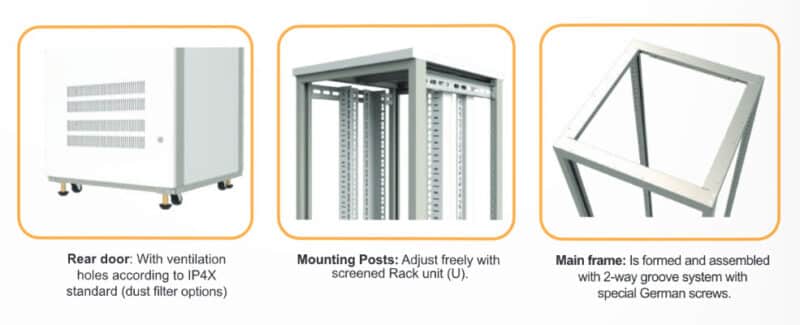

Main Structure: Electro-galvanized steel 2.0 mm thick, formed and assembled using a double-layer pyramid shape in two directions, secured with special German screws for increaseing strength.

Mounting Posts: Electro-galvanized steel 2.0 mm thick, designed with a C-shaped profile and perforated according to ANSI/EIA-310-E standards, with 10×10 mm square holes for equipment mounting and flexible to adjust freely with screened Rack unit (U).

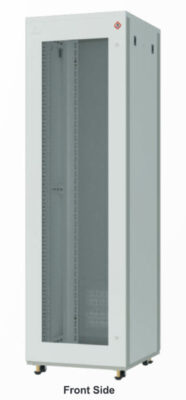

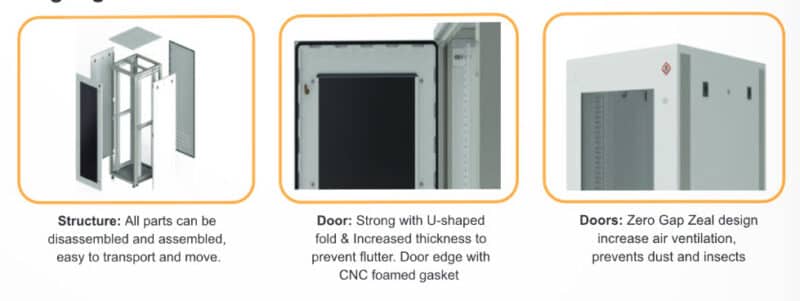

Front Door: Electro-galvanized steel 1.5 mm thick, light brown acrylic panel. The door edges are reinforced with U-shaped folded steel and sealed with CNC foamed gasket to prevent dust Zero Gap Zeal design without hinges, with a master key lock and embossed trademark.

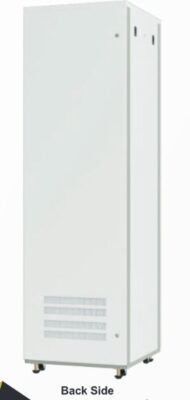

Rear Door: Electro-galvanized steel 1.5 mm thick, with perforations at the bottom for ventilation, designed according to German technology and IP4X standards. The edges are reinforced with U-shaped folded steel and CNC foamed gasket to prevent dust. Zero Gap Zeal design without hinges, with a master key lock and embossed trademark. The bottom vent includes a dust filter can be installed afterward (options).

Side Panels: Electro-galvanized steel 1,2 mm thick, removable from the cabinet frame. Each side has two sliding latch locks and a master key locking system.

Top Cover: Elevated design to fit the cabinet frame, with slots for installing up to 6 sets of 4-inch ventilation fan for high efficient heat dissipation.

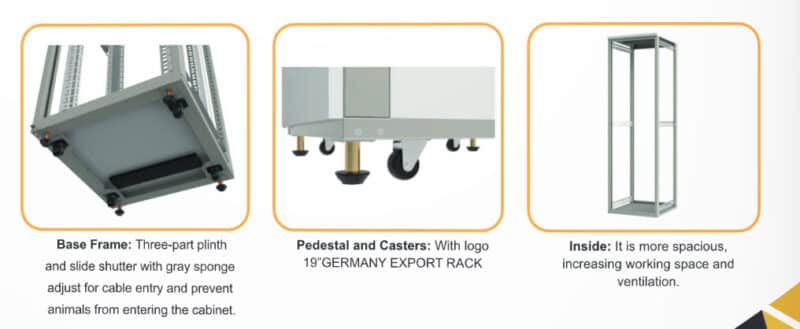

Base Frame: Three-part plinth and slide shutter with gray sponge adjust for cable entry and prevent animals from entering the cabinet, pedestal up and down adjustable made from ABS anti-static material, can tilt 180 degrees for uneven surfaces. Equipped with Nylon 6 castors, sized between 2-3 inches depending on cabinet size, capable of 360-degree rotation, and supporting up to 150 kg per caster.

Color: White gray and dark gray, finished with electrostatic powder coating for smooth, uniform, and durable surfaces that meet ASTM standards.

Safety: Grounding wires connect all parts of the cabinet, with grounding points and bolts free of paint to ensure full and efficient discharge of electrical currents.

Load Capacity: Dynamic load 1,200 kg, static load 2,000 kg.

Manufacturer Standards: certified to ISO 9001:2015 and ISO 14001:2015 standards.

Warranty: 19 GERMANY EXPORT RACK cabinets are guaranteed for 30 years against corrosion and rust.
